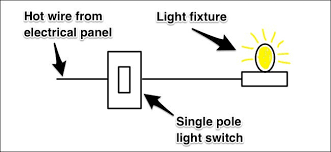

How To Wire A Light Fixture And Switch Diagram / Where The Red Wire Goes In A Light Fixture The Silicon Underground / Single pole switch diagram #2 this switch wiring diagram shows the power source starting at the fixture box.. Hold the red and black terminals of your circuit tester to a red and a black wire that appear in the same cable. Connect the black wire from the power supply to the white wire of the cable connected to the switch. Twist the ground wires from both ends together and fasten with a wire nut. How to wire light fixtures. And make sure all of your ground connections are completed and securely fastened.
Run your cable from the first light to the second light. Light connection diagram double circuit wiring بشفافية منبسط تحرق fluorescent lamp lampholder for a single loft or garage twin blackening of ends lamps lighting circuits connections how to direct wire ended led uvc installed 2 ballasts t8 fixture install switch 4w driver rapid start ballast finished diy repair fixtures smartthings and. A switch interrupts the hot leg of the circuit, so it has terminals only for black wires (and ground). The following diagram shows how to wire a light switch when the power source runs into the light fixture before it goes to the switch. In this diagram, power enters the fixture box.
3 Way Switch Wiring With Ge Smart Switch Devices Integrations Smartthings Community from www.homeimprovementweb.com Just a ceiling electrical box with a circuit in it. At the end of the insulation on the white wire leading to the first switch, wrap a small piece of black electrical tape. There are many ways to control and automate your lights with smartthings. The ceiling light fixture requires a neutral for the light to work and your wall switch box does not have a neutral wire available, so additional wiring will be required to obtain the neutral wire from the outlet. Light switch wiring diagram depicted here shows the power from the circuit breaker panel going to a wall switch and then continues to a ceiling light with a three conductor cable. The white wire becomes the energized switch leg, as indicated by using black or red electrical tape. Using a wire cutter, cut the length of the light fixture's electric wires to the length of the house wires. Click the icons below to get our nec ® compliant electrical calc elite or electric toolkit, available for android and ios.
And this will be complete guide of wiring a light switch.
And make sure all of your ground connections are completed and securely fastened. Step 2 this tutorial will explain the job as if there is currently no light fixture or switch installed in the room; (using the diagram above, this would mean either cable 1, 2 or 3. A switch interrupts the hot leg of the circuit, so it has terminals only for black wires (and ground). Adding a wall switch to a ceiling fixture can be done in a matter of hours. Wiring light fixtures in your home. At the light, it connects to the neutral terminal. Jan 24, 18 02:09 pm The wiring of light switch is very simple connection but before we start the wiring connection. Applies to spot switches, non led switches, basic 2 wire switches (2 prong). Most light fixtures have two electrical wires with colored insulation and a copper ground wire. Run your cable from the first light to the second light. As a homeowner, you will likely need to replace a light switch many times and paying an electrician is not optimal when you can do it in just a few minutes.
From the ceiling box an electrical receptacle outlet is fed power. At the light, it connects to the neutral terminal. The following diagram shows how to wire a light switch when the power source runs into the light fixture before it goes to the switch. From this post you complete learn about light switch wiring with a simple diagram and video tutorial in english language. An enthusiastic homeowner can save the cost of a professional by knowing which wires connect to which.
How To Add A Light Diy Electrical Home Electrical Wiring Electricity from i.pinimg.com Run your cable from the first light to the second light. Step 2 this tutorial will explain the job as if there is currently no light fixture or switch installed in the room; The following diagram shows how to wire a light switch when the power source runs into the light fixture before it goes to the switch. Then turn on the light switch (with all power off to the lighting circuits, there is no power to the switch). An enthusiastic homeowner can save the cost of a professional by knowing which wires connect to which. How to wire a light switch learning how to wire a light switch is one of the basic skills that every homeowner should do. The white wire of the romex going to the switch is attached to the black line in the fixture box using a wirenut. The biggest challenge is planning the cable route and running it from the fixture to the new wall switch position.
Jan 24, 18 02:09 pm
Connect the house wires and the wires of the new light fixture in the reverse way you used to disconnect the old light fixture. How to wire a light switch learning how to wire a light switch is one of the basic skills that every homeowner should do. An enthusiastic homeowner can save the cost of a professional by knowing which wires connect to which. The diagram above shows a two conductor cable from the circuit breaker panel going to a wall switch. The ceiling light fixture requires a neutral for the light to work and your wall switch box does not have a neutral wire available, so additional wiring will be required to obtain the neutral wire from the outlet. The white wire becomes the energized switch leg, as indicated by using black or red electrical tape. Install a 3 wire cable from the first switch box to the light fixture's box. If you choose to control your overhead lighting with smart switches or dimmers, you'll either want to hire an electrician to install the switch, or wire the light yourself. There are many ways to control and automate your lights with smartthings. The biggest challenge is planning the cable route and running it from the fixture to the new wall switch position. Wiring a new switch and light from an outlet in this diagram power is taken from an existing wall outlet for a new switch and light fixture. Jan 24, 18 02:26 pm. Bath, electric and around the house.
And make sure all of your ground connections are completed and securely fastened. Wiring light fixtures in your home. Connect the black wire from the switch to the black. Jan 24, 18 02:09 pm Most light fixtures have two electrical wires with colored insulation and a copper ground wire.
3 Way Switch How To Wire A Light Switch from www.howtowirealightswitch.com Single pole switch diagram #2 this switch wiring diagram shows the power source starting at the fixture box. And this will be complete guide of wiring a light switch. Using a wire cutter, cut the length of the light fixture's electric wires to the length of the house wires. To wire this circuit in this manner, you will need to run a #14/3 between the two light boxes. Wrap a piece of black electrical tape around each end of this white wire to indicate that it is a hot wire rather than a neutral wire. The ceiling light fixture requires a neutral for the light to work and your wall switch box does not have a neutral wire available, so additional wiring will be required to obtain the neutral wire from the outlet. Adding a wall switch to a ceiling fixture can be done in a matter of hours. The following diagram shows how to wire a light switch when the power source runs into the light fixture before it goes to the switch.
The following diagram shows how to wire a light switch when the power source runs into the light fixture before it goes to the switch.
Bath, electric and around the house. Step 2 this tutorial will explain the job as if there is currently no light fixture or switch installed in the room; As a homeowner, you will likely need to replace a light switch many times and paying an electrician is not optimal when you can do it in just a few minutes. Light switch wiring diagram depicted here shows the power from the circuit breaker panel going to a wall switch and then continues to a ceiling light with a three conductor cable. To wire this circuit in this manner, you will need to run a #14/3 between the two light boxes. Wiring four lights on one switch, or daisy chaining as it is also called, is an efficient way to control lighting for homes and business. Adding a wall switch to a ceiling fixture can be done in a matter of hours. Daisy chaining is the method of tying more than one light fixture onto a switching circuit in which the lights are placed in a parallel circuit and controlled by one switch. To help guide you through wiring a light switch yourself, we wanted to highlight a great post from the smartthings community posted by sidjohn1. Install a 3 wire cable from the first switch box to the light fixture's box. Then turn on the light switch (with all power off to the lighting circuits, there is no power to the switch). Twist the ground wires from both ends together and fasten with a wire nut. The diagram above shows a two conductor cable from the circuit breaker panel going to a wall switch.
